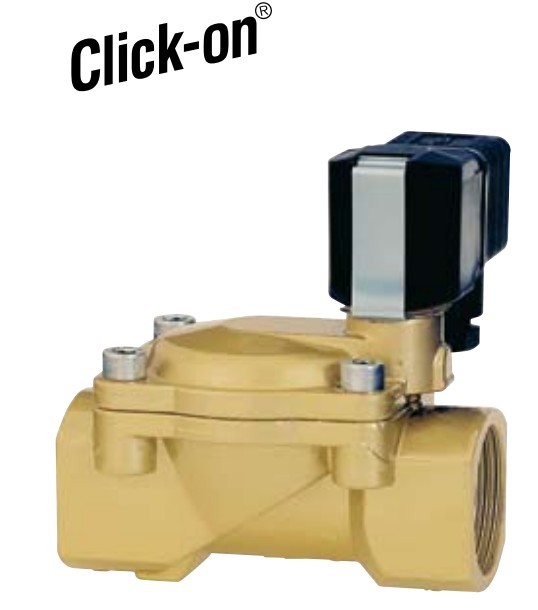

2/2-way valves DN 8 to DN 50
For neutral gases and liquids Indirectly solenoid actuated Diaphragm valves Internal threads G 1/4 to G 2 or 1/4 NPT to 2 NPT Operating pressure 0.1 to 10 / 16 bar

Description (standard valve)

Solenoid valve for e. g. air, water
Switching function: normally closed
Flow direction: determined
Differential pressure: 0.1 bar required (0.3 bar for EPDM)
Fluid temperature: –10 °C to max. +90 °C
Ambient temperature: –10 °C to max. +50 °C
Mounting position: optional, preferably solenoid
vertical on top

Material

Body: Brass (CW617N)
Seat seal: NBR
Internal parts: Stainless steel, PVDF

For contaminated fluids insertion of a strainer is recommended.

Features

High flow rate •
Damped operation •
Functional compact design •
Solenoid interchangeable without tools ( • c)
Particulary suitable as a water valve according to DIN EN 60730-2-8

Symbol

Ordering information

To order, quote model number from table overleaf, e. g. 8240400.9101 for a DN 25 valve.
